Wood Door Shrink Wrapping Package Machine

Wood Door Shrink Wrapping Package Machine

KUKOtakes clients as the god trying best to satisfy all kinds of their requirements to manufacture thewood door shrink package machine,door shrink wrapping machine,door shrink machine

Tel: +86-021 6974 6020 E-mail: info@kukopacking.com

FEATURES

TECHNICAL PARAMETER

LAYOUT

APPLICATIONS

● GH-6030AF Fully-auto Horizontal Double Side Sealer which is developed for special big items adopts advanced high speed double-side sealing technology. It has up & down single film rollers. The film is in sync with the items. While the items are going forward, the side sealing system starts to seal and cut the up & down film that keeps good sealing;
● Continuous sealing & cutting and no limits of the item length make it particularly suitable for longer, wider and heavy products’ fully-closed packaging with PE film, such as doors, furniture, ladders, mattresses and other heavy and oversized objects;
● The waste film can be winded automatically for easily clean-up;
● Side sealing lines can be adjusted to the desired position which based on the product’s height in order to achieve excellent sealing strength results;
● For 40 ~ 120 microns thickness PE shrink film;
● Input & output conveyors and colored film positioning function can be added as per customer demand;

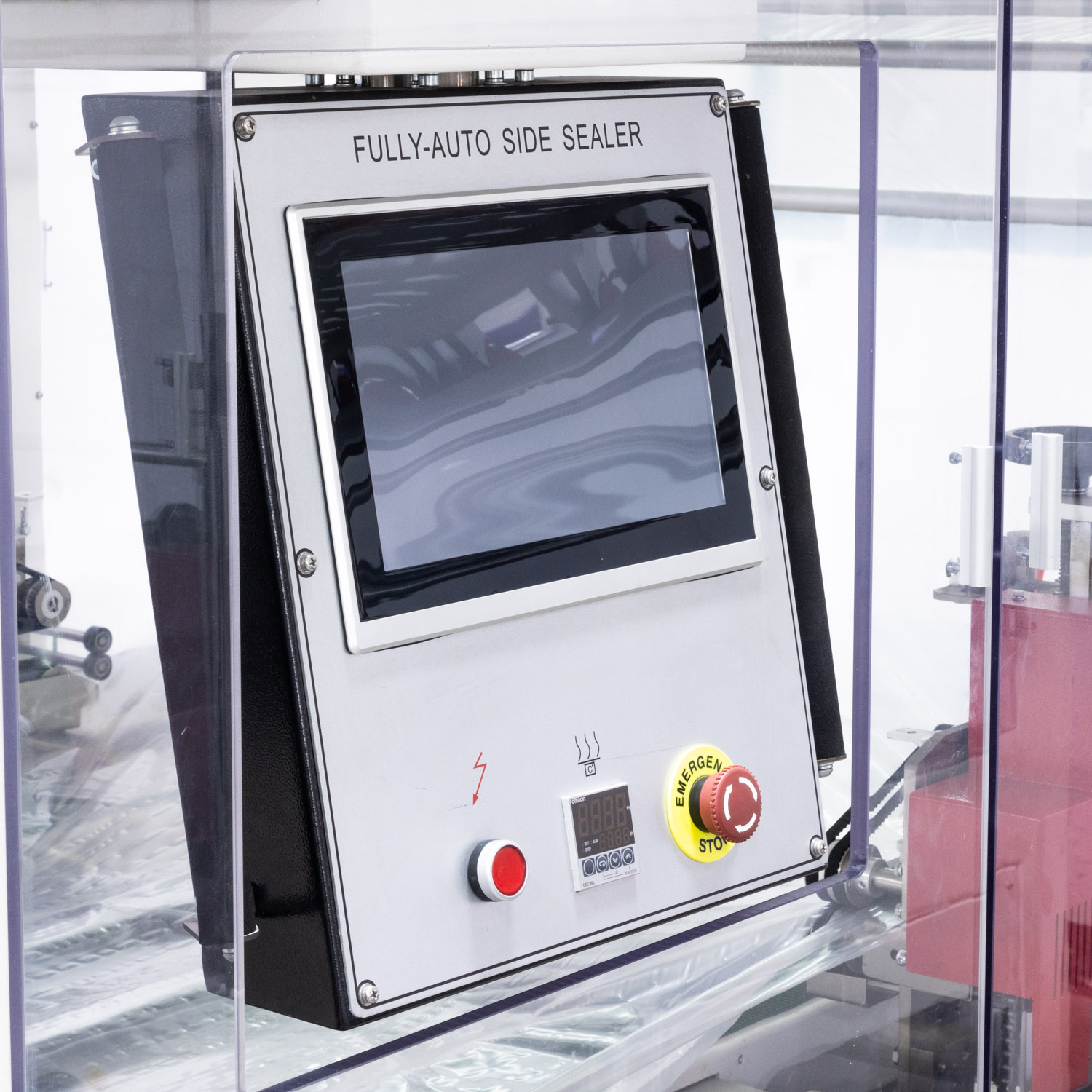

● Humanized touch smart operation interface is convenient for the operator to use;
● Siemens PLC program controller achieves the integrations of mechanism, electricity and pneumatic;
● Imported photo sensors to detect the horizontal and vertical section to satisfy different products’ packaging;
● Assorted shrink tunnel SF-15040E uses imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;
● PE high strength film is suitable for long distance transportation and frequent handling that can avoid damage and keep away from moisture.
● Chain bar conveying, using solid steel covered with durable imported silicone tube. SF-15040E can add density bar roller function which specially designed for small product;
● The use of French “Schneider “inverter controls transmission speed which has the function of infinitive speed;
● The chamber length is short which can greatly reduce the machine power; at same time it maintains good packing effect;
● Applicable shrink film: PE;
● For beverage, chemical, building material, food packing with or without paper tray. And the tunnel can be used for electrical appliances, auto parts, furniture, flooring and other individual or group sealing and shrink wrap.

Model	GH-6030AF	SF-15040E
Power	6 kw	56 kw
Power supply	AC 220/380V 3PH 50/60Hz	AC 380/220V 3PH 50/60Hz
Max. Packing Size L×W×H	550mm	3000×1300×250mm；
Max. Packing Size L×W×H	L(unlimited ); W+H <= 1150mm; H<=250mm	W+1.5H<1400mm
Tunnel Chamber Size L×W×H	/	4000×1500×400mm
Horizontal Blade Length	1300mm	/
Seal/Shrink Temperature	0-300℃	0-300℃
Table Height	850±25mm	825±25mm
Packing Speed	0~15m/min.	0~18m/min.
External Air Source	6-8kg/cm2	/
Applicable Shrink Film	PE	PE
Machine Size L×W×H	2380×1800×1780mm	5000×1820×1850mm
Crate Size L×W×H	2500×2000×2250mm	5100×1900×2000mm
G./N. Weight	1735/1600kgs	2700/2550kgs
